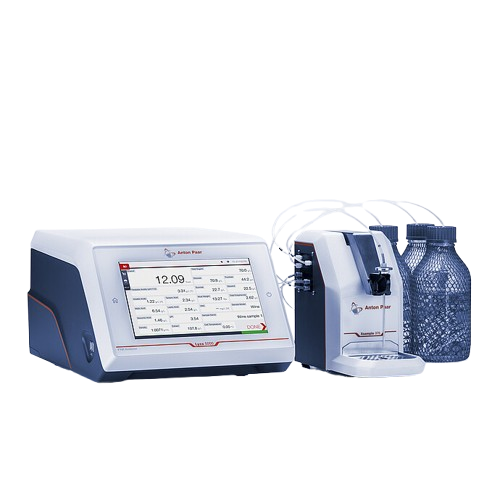

Anton Paar Lyza 5000 Wine FTIR Wine Analyzer (14 mL; 31 seconds)

Minimum sample volume: 14 mL

Measurement time per sample⁴: 31 seconds

Cell type: 12-bounce ATR Ge flow-through cell

Dimensions (L x W x H): 450 mm x 340 mm x 240 mm (17.7 in x 13.4 in x 9.4 in)

Cell temperature control: Peltier element

Stability ±0.005 °C

Accuracy ±0.03 °C

Power supply: AC 100 to 240 V; 47 to 63 Hz; DC 24V, 3A

Weight: 15.2 kg (33.5 lbs)

Communication interfaces: 5 x USB; RS-232; CAN; Ethernet; WiFi ⁵

Display: 10.1 in PCAP touchscreen TFT WXGA (1280 Px x 800 Px)

⁴ After temperature equilibration

⁵ Via external WiFi dongle
