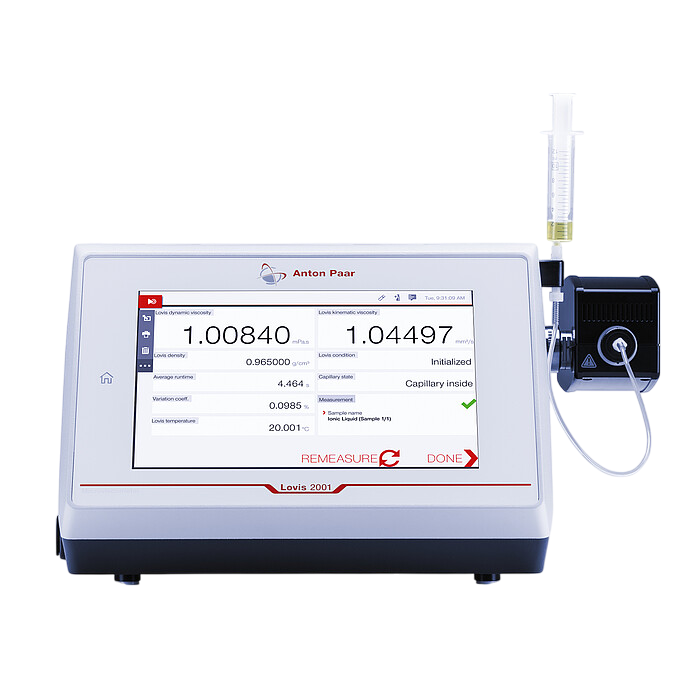

Anton Paar Lovis 2001 Rolling And Falling Ball Viscometer (0.2~10,000 mPa·s; 0.5 s-1 ~ 1,000 s-1; 5 °C~100 °C)

Measuring Range:

Dynamic viscosity: 0.2 mPa·s to 10,000 mPa·s

Shear rate : 0.5 s-1 to 1,000 s-1

Temperature: 5 °C to 100 °C (41 °F to 212 °F)

-40 °C to +100 °C (-40 °F to +212 °F) (with  counter cooling)1)

Measuring Range:

Dynamic viscosity: 0.2 mPa·s to 10,000 mPa·s

Shear rate : 0.5 s-1 to 1,000 s-1

Temperature: 5 °C to 100 °C (41 °F to 212 °F)

-40 °C to +100 °C (-40 °F to +212 °F) (with  counter cooling)1)

Test duration: Minimal 30 s, typical 3 min

Sample volume: 0.1 mL to 0.8 mL

Weight: 19.9 kg (43.9 lb)

Dimensions (L x W x H) : 526 mm x 420 mm x 230 mm (20.7 in x 17.2 in x 9 in)

Power supply : AC 100 V to 240 V; 50 Hz to 60 Hz; 190 VA

1) Specified temperatures are valid for a max. ambient temperature of 35 °C (95 °F). Lower measuring temperatures are achieved in lower ambient temperatures and/or with special equipment.

2) Verified with a 1.59 capillary at 70° angle and Ethanol 96 % at 20 °C using the same ball for all repeated measurements.

3) Verified with a 1.59 capillary with a single-point adjustment performed on site at 70° angle; adjustment and all measurements performed with distilled water at 20 °C with the same ball.

Brochure
