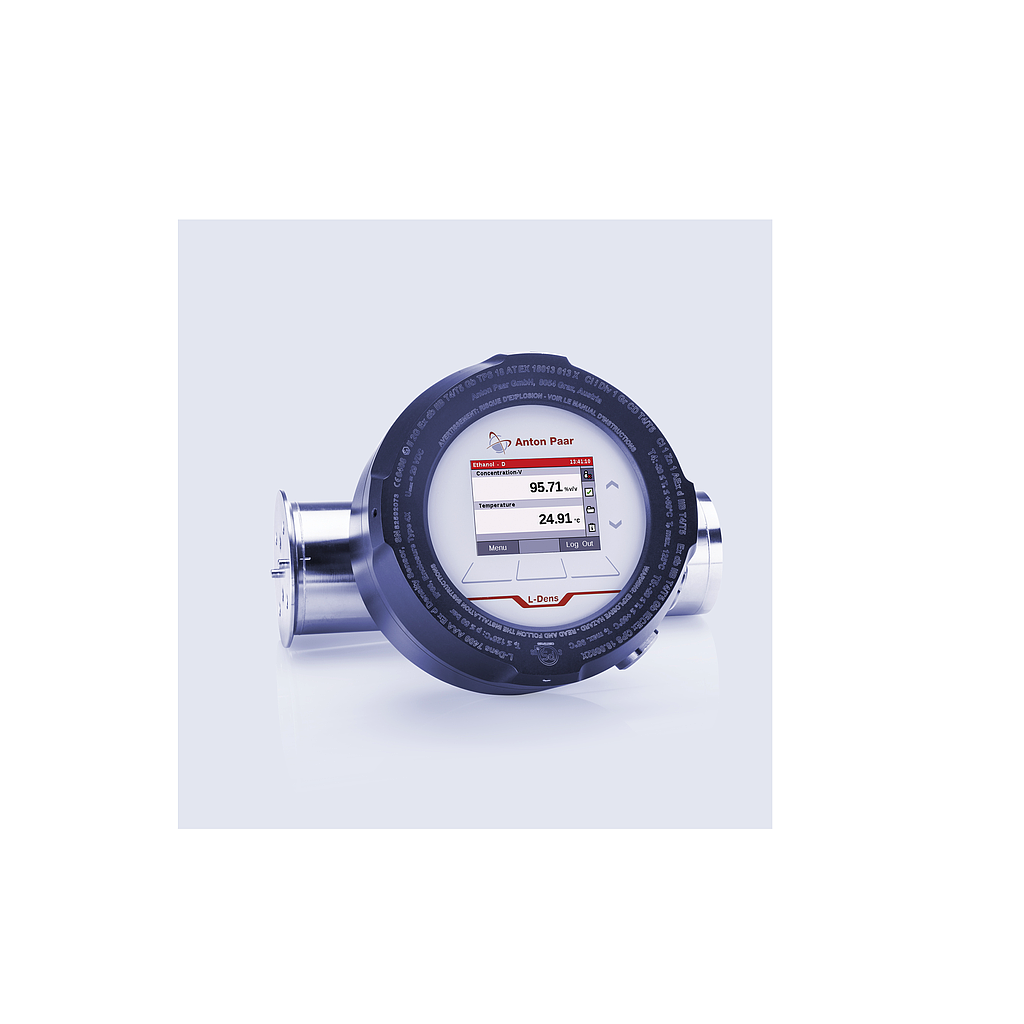

Anton Paar L-Dens 7500 Inline Density Meter (2,000 kg/m³, 0.05 kg/m³)

Measuring range: Max. 2,000 kg/m³

Accuracy in adjusted range: 0.05 kg/m³

Process temperature: -40°C to +125°C

CIP/SIP temperature and duration non-Ex version: 145 °C for max. 30 min

Ambient temperature: -40°C to +70°C

Process pressure absolute: Max. 50 bar

Material of the wetted parts: Alloy C-276

Communication: Can be combined with Pico 3000, Pico 3000 RC, mPDS 5, and Edge

Process connections: Adapter for inline, bypass, and tank installation

Flange: DIN/EN, ANSI, JIS, Tri-Clamp, VARIVENT® N,  G 3/8”, Tube OD 12 mm, or 1/4”

U-tube inner diameter: 6.3 mm

Recommended flow rate: 100 L/h to 500 L/h

Degree of protection: IP 66 / 67 / NEMA 4X

Dimensions: 190 mm x 145 mm x 185 mm(Ex: 190 mm x 160 mm x 205 mm)

Standard adjustment range: 600 kg/m³ to 1,200 kg/m³

Weight: 4.5 kg
