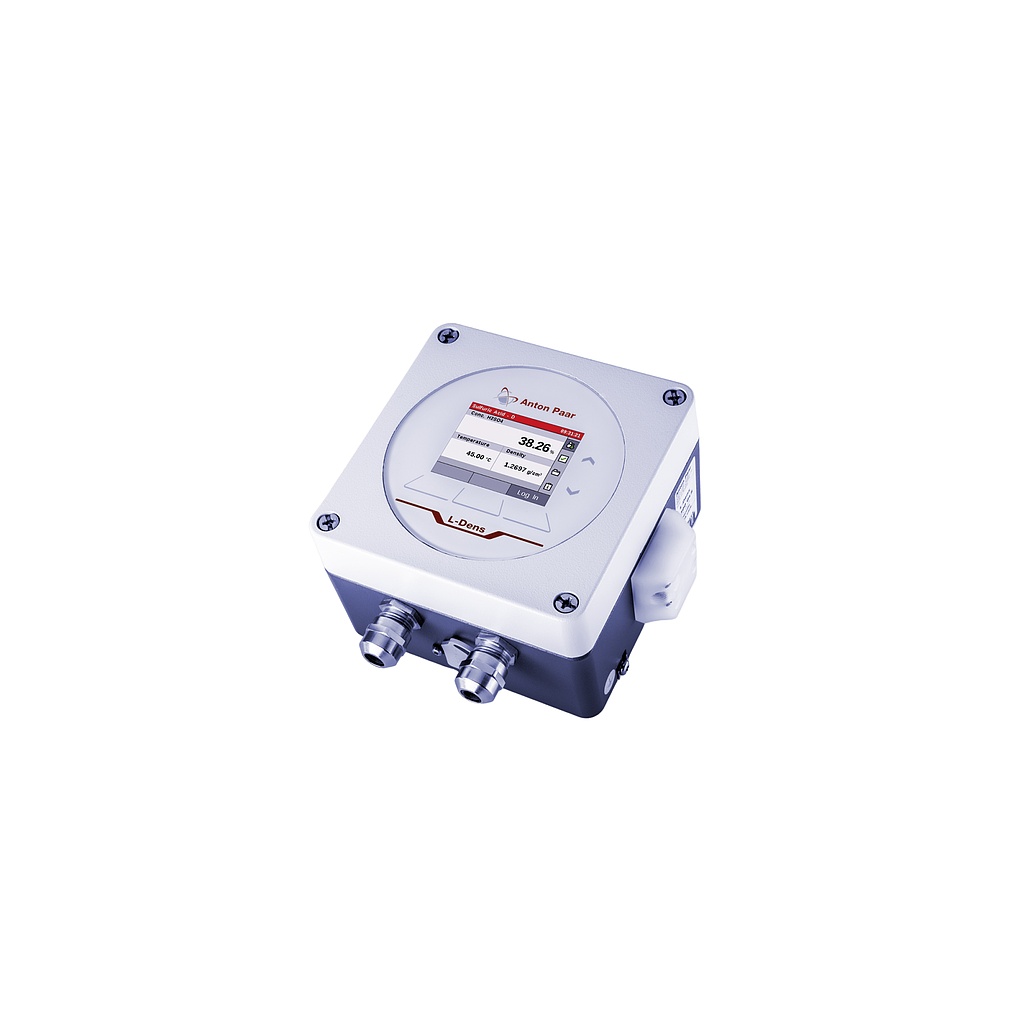

Anton Paar L-Dens 3300 Inline Density Meter (500 kg/m³ - 2000 kg/m³)

Measuring range: 500 kg/m³ to 2,000 kg/m³

Accuracy in adjusted range: 1 kg/m³

Process temperature:

SST: 10°C to 80°C

GLS: -10°C to +60°C

CIP/SIP temperature and duration: SST: 95 °C for 30 min

Ambient temperature: -10 °C to +40 °C

Process pressure absolute:

SST: max. 16 bar

GLS: max. 6 bar

Material of the wetted parts:

SST: 1.4571, 1.4404, PVDF, Viton

GLS: glass, PVDF, Kalrez

Communication: Analog, RS-232, RS-485, Relay

Process connections: G 1/8"

U-tube inner diameter:

SST: 2.1 mm

GLS: 2.1 mm

Recommended flow rate:

SST: 10 L/h to 80 L/h

GLS: 10 L/h to 70 L/h

Dimensions: 166 mm x 155 mm x 91 mm

Standard adjustment range: 500 kg/m³ to 2,000 kg/m³

Weight: 1,800 g
