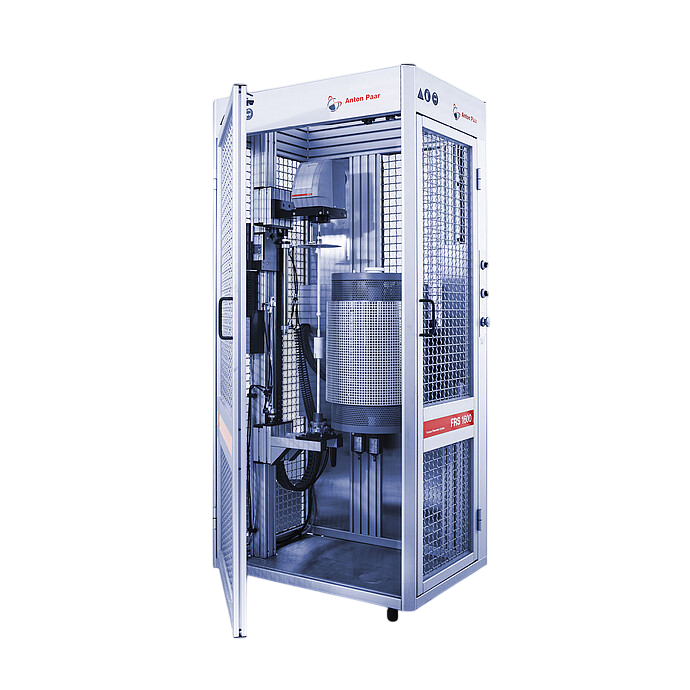

Anton Paar FRS 1800 High Temperature Viscometer and Rheometer (600 °C ~ 1730 °C)

Bearing:  Air

Maximum torque mNm: 230

Minimum torque, rotation nNm: 10

Minimum torque, oscillation nNm: 2

Torque resolution nNm: 0.1

Viscosity range Pa.s: 0.001–107

Angular deflection, set value: µrad 0.1 to

Angular deflection, resolution nrad: 10

Minimum angular velocity rad/s: 10-9

Maximum angular velocity rad/s: 314

Minimum speed (CSS/CSR) 1/min: 10-9

Maximum speed FRS 1/min: 300

Maximum speed measuring head 1/min: 3000

Minimum angular frequency rad/s: 10-

Maximum angular frequency rad/s: 628

Normal force range N: 0.005 to 50

Normal force resolution mN: 0.5

Dimensions  mm: 680 x 1950 x 920 mm

Weight kg: 150

Oven temperature range °C: 20, 600 to 1800

Minimum sample temperature °C: Room temperature

Maximum sample temperature °C: 1730
