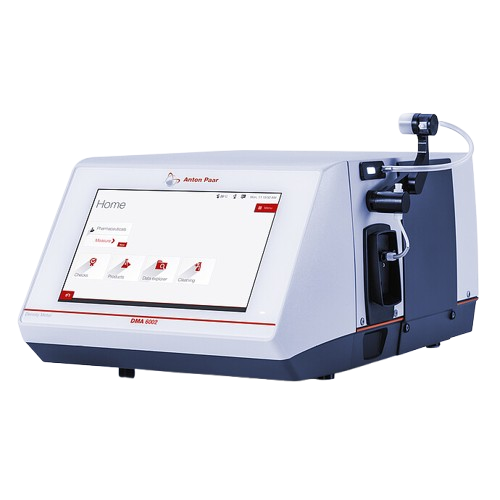

Anton Paar DMA 6002 Modular Benchtop Density Meter (0.000001 g/cm³; 0.001 °C)

Measuring range

Density: 0 g/cm³ to 3 g/cm³

Temperature: 0 °C to 100 °C (32 °F to 212 °F)

Pressure: Up to 10 bar (145 psi) absolute pressure

Accuracy*

Density: 0.000005 g/cm³

Temperature: 0.01 °C (0.02 °F)

Repeatability s.d.**

Density: 0.000001 g/cm³

Temperature: 0.001 °C (0.002 °F)

Reproducibility s.d.**

Density: 0.000001 g/cm³

Digital resolution

Density: 0.000005 g/cm³

Ambient temperature: 15 °C to 35 °C (59 °F to 95 °F)

Typical measuring time/sample: 30 s

Dimensions (L x W x H): 526 mm x 347 mm x 230 mm (20.7 in x 13.7 in x 9 in)

Weight: 22.04 kg (48.6 lbs)

Power supply: AC 100 to 240 V, 50/60 Hz, fluctuation ± 10 %, 190 VA

Display: 10.1" TFT WXGA (1280 x 800 px); PCAP touchscreen

Controls: Touchscreen, optional keyboard, mouse, and barcode reader

Communication interfaces: 4 x USB, Ethernet, CAN, RS232

* According to ISO 5725

** Under ideal conditions and for low viscosities
