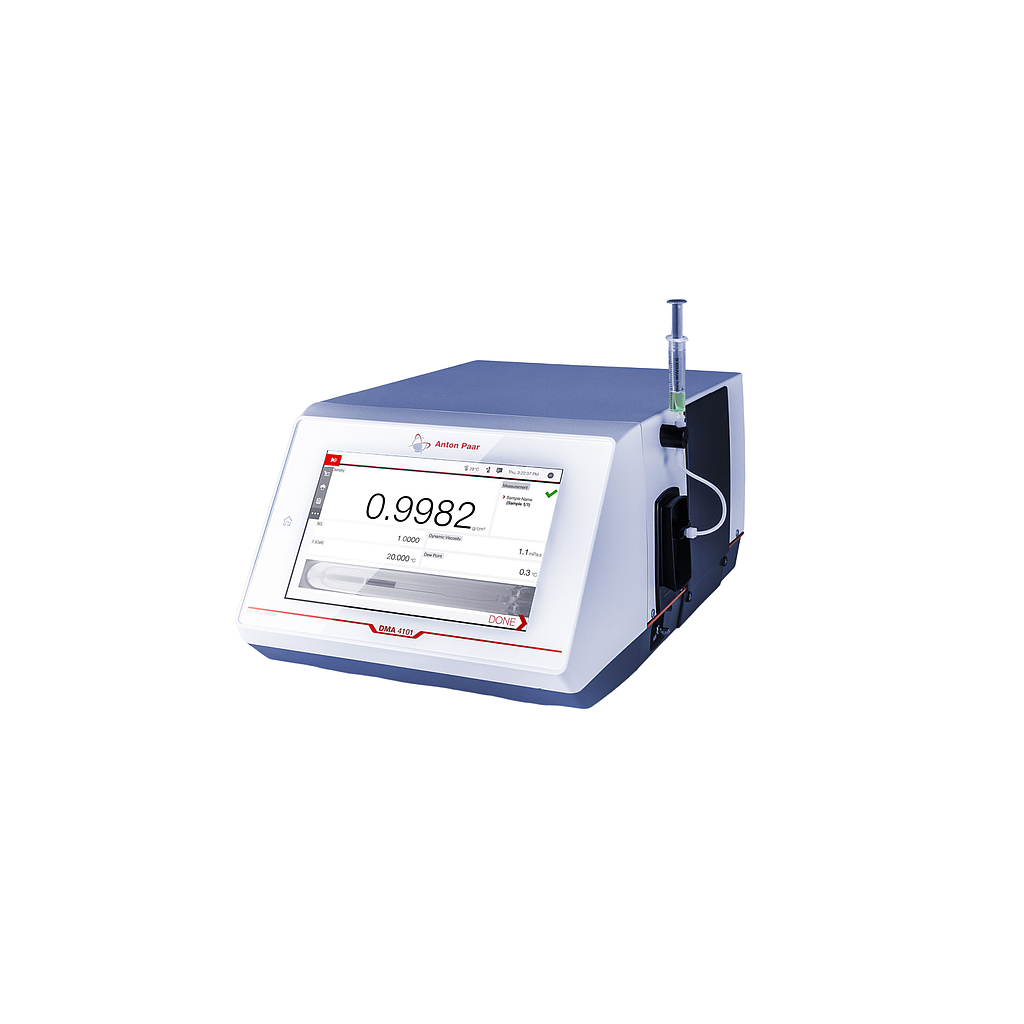

Anton Paar DMA 4101 Benchtop Density Meter (0 g/cm³ - 3 g/cm³; 0°C - 100°C)

Measuring range

Density: 0 g/cm³ to 3 g/cm³

Temperature: 0 °C to 100 °C (32 °F to 212 °F)

Pressure: Up to 10 bar (145 psi) absolute pressure

Accuracy

Density: 0.0001 g/cm³

Temperature: 0.03 °C (0.05 °F)

Repeatability

Density: 0.00001 g/cm³

Temperature: 0.02 °C (0.04 °F)

Reproducibility

Density: 0.00005 g/cm³

Digital resolution

Density: 0.0001 g/cm³

Features

Power features: U-View™, FillingCheck™, ThermoBalance™, full-range viscosity correction

Special functions: QM compliance, temperature scan, built-in ambient pressure sensor, condition monitoring adjustment at high viscosity (only DMA 5001 )

Automation: Automatic sample changers

Modularity: pH, alcohol, CO2, O2, color, turbidity, refractive index

Optional accessories: Aerosol adapter, heating attachment

Technical data

Typical measuring time/sample: 20s

Minimum sample volume: Approx. 1 mL

Wetted materials: PTFE, borosilicate glass

Dimensions (L x W x H): 526 mm x 347 mm x 230 mm (20.7 in x 13.7 in x 9 in)

Weight: 22.04 kg (48.6 lbs)

Power supply: AC 100 to 240 V, 50/60 Hz, fluctuation ±10 %, 190 VA

Display: 10.1" TFT WXGA (1280 x 800 px); PCAP touchscreen

Controls: Touchscreen, optional keyboard, mouse, and barcode reader

Communication interfaces: 5 x USB, Ethernet, CAN, RS232

Internal storage: More than 10,000 measuring values with camera images
