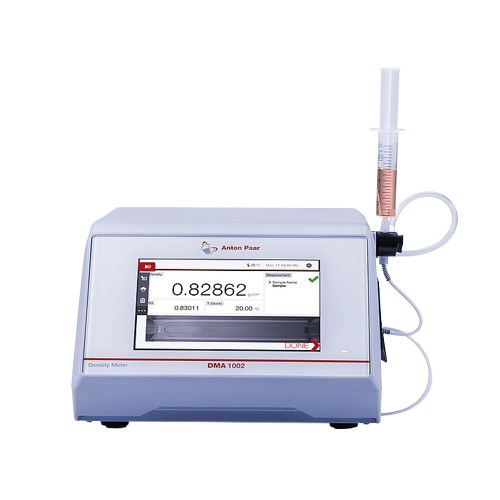

Anton Paar DMA 1002 Compact Digital Density Meter (0.00005 g/cm³; 0.02 °C)

Measuring range

Density:  0 g/cm³ to 3 g/cm³

Temperature:  15 °C to 60 °C (59 °F to 140 °F)

Pressure: 0 bar to 10 bar (0 psi to 145 psi)

Accuracy*

Density: 0.0001 g/cm³

Temperature: 0.03 °C (0.02 °F)

Repeatability, s.d.***

Density: 0.00005 g/cm³

Temperature: 0.02 °C (0.04 °F):

Reproducibility, s.d.***

Density: 0.00007 g/cm³

Digital Resolution

Temperature: 0.01 °C (0.01 °F)

Dimensions (L x W x H): 375 mm x 280 mm x 180 mm (14.8 in x 11.0 in x 7.0 in)

Weight: 13.5 kg (29.8 lb)

Power supply: AC 100 to 240 V; 47 to 63 Hz; DC 24V, 3A

Display: 7 inches, TFT WVGA (800 x 480 Px); PCAP touchscreen

Controls: Touchscreen, optional keyboard, mouse, and barcode reader

Communication interfaces: 1 x Ethernet, 3 x USB, 1 x RS232

Internal storage: 5000 measured results; 400 products
