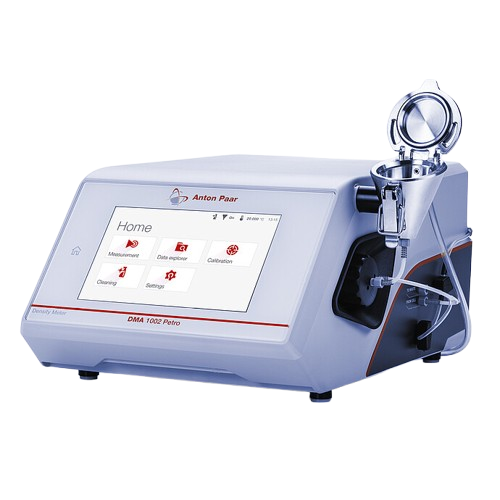

Anton Paar DMA 1002 Petro Density Meter (0.00005 g/cm³; 0.005 °C)

Measuring range

Density:  0 g/cm³ to 3 g/cm³

Viscosity: -

Temperature:  15 °C to 100 °C (59 °F to 212 °F)

Pressure: Ambient pressure to 1 bar (relative pressure)

Accuracy

Density: ± 0.0001 g/cm³

Temperature: 0.03 °C from +15 °C to +100 °C

Viscosity: -

Repeatability, s.d.

Density: 0.00005 g/cm³

Viscosity: -

Temperature: 0.005 °C (0.01°F)

Reproducibility, s.d.

Density: 0.0001 g/cm³

Viscosity: -

Temperature: 0.03 °C from +15 °C to +100 °C

Digital Resolution

Density: 5 significant digits

Viscosity: -

Temperature: 0.001 °C (0.001 °F)

Dimensions (L x W x H): 365 mm x 265 mm x 180 mm (14.4 in x 10.5 in x 7.1 in)

Weight: 6.6 kg (14.55 lbs)

Power supply: At instrument: DC, 24 V /3A, AC adapter 90 VAC to 264 VAC, 47 Hz to 63 Hz, < 75W

Display: 7 inches, TFT WVGA (800 x 480 Px); PCAP touchscreen

Controls: Touchscreen, optional keyboard, mouse, and barcode reader

Communication interfaces: 4 x USB (3 x A, 1 x B)

Internal storage: 1,000 measured results
