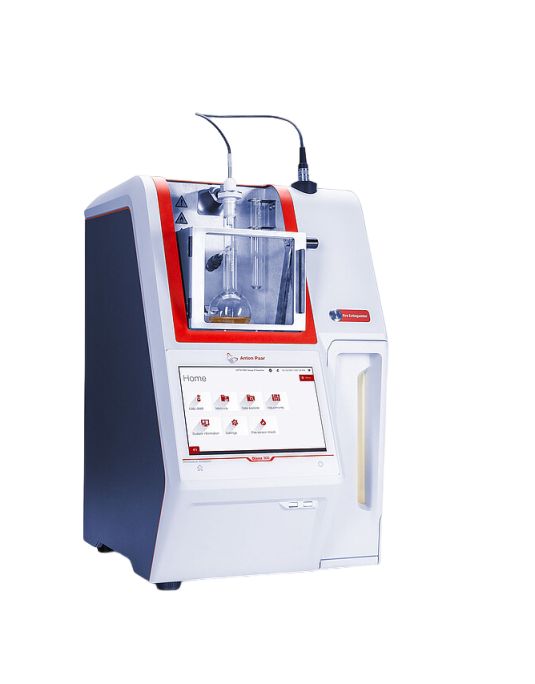

Anton Paar Diana 300 Atmospheric Distillation Analyzer

Standard test methods: ASTM D86 (Group 0, 1, 2, 3, 4), EN ISO 3405 (Group 0, 1, 2, 3, 4), IP 123, JIS K 2254, GOST 2177

Operation

User interface: 10" TFT color touchscreen, solvent-proof

Heating system:

Low mass/low voltage heating system with manual positioning of heater and safety shield

Preprogrammed initial heater settings in test methods

Condenser system:

Liquid-free cooling with Peltier technology

Temperature range: 0 °C to 80 °C, resolution: 0.1 °C

Receiving chamber:

Liquid-free cooling with Peltier technology

Temperature range: 0 °C to 80 °C, resolution: 0.1 °C

Corrosion-proof:

Automated reduced VOC emission

Vapor temperature: Pt100, class A ( glass)

Temperature range: 0 °C to 450 °C, resolution: 0.1 °C

Automatic correction by barometric pressure

Sample volume: Optical static detection system with contact image sensor (CIS) technology

Volume range: 0 mL to 100 mL, resolution: 0.01 mL

Accuracy: ±0.1 mL

Ambient pressure: Built-in pressure sensor, range: 30 kPa to 110 kPa, resolution: 0.1 kPa

Ambient humidity: Built-in humidity sensor, range: 0 % to 95 % (rel. humidity)

Ambient temperature: Built-in temperature sensor, temperature range: -20 °C to +80 °C, resolution: 0.1 °C

Status light: No

Test results: 200

User defined test methods: 15

Safety

Fire extinguisher:

Built-in fire extinguisher with IR sensor for fire detection

Connection of 4 bar to 6 bar CO2 or N2

Condition monitoring system: Detection of vapor temperature sensor, receiving chamber door, receiving cylinder, drip plate

Operating Requirements

Temperature: 10 °C to 35 °C

Relative humidity: 10 % to 80 % relative humidity at 35 °C

Voltage: 100 V to 240 V, 50/60 Hz

Total power: 900 W

Altitude: 0 m to 5000 m

Dimensions and Weight

Dimensions:  approx. 406 mm × 525 mm × 645 mm (W × D × H)

Weight: approx. 40 kg

Further Features

Connectivity: 2 × USB

Accessories: bar code reader, printer, receipt printer, keyboard, various certified reference materials (CRM)
