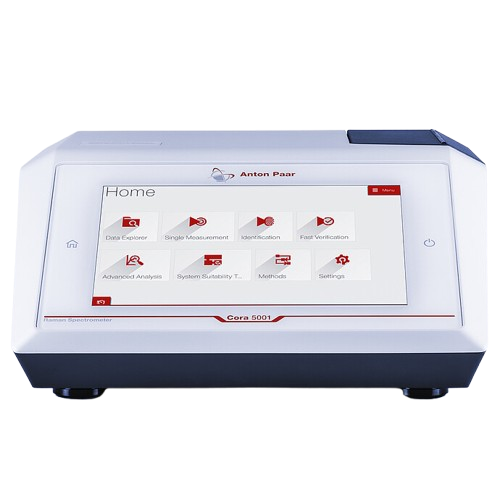

Anton Paar Cora 5001 Direct Dual Wavelength Compact Raman Spectrometer

Safe: Laser class 1 for unsurpassed laser safety

Automated: Autofocus finds the best Raman signal within seconds

Efficient: Tailored accessories for liquid and solid samples, pills, foils, microscope slides, and petri dishes

Dimensions (D x W x H): 355 mm x 384 mm x 168 mm (14.0 in x 15.1 in x 6.6 in)

Weight: 9.8 kg

Operating range: 10 °C to 35 °C (non-condensing)

Fiber probe dimensions: Cable length: 1.50 m

Battery (optional): Lithium-ion

Battery run time: >1.5 h

Power supply input: Line power supply input: 115/230 V AC, 50/60 Hz

Car power adapter input: 9 V to 32 V DC

Power consumption: In-line power supply input: max. 100 VA

DC input: typical 30 VA (60 VA when optional battery is charged)

Additional specifications

Display: 10-inch touch screen

Data ports: 4 x USB 2.0, 1 x Ethernet, 1 x CAN out and 1 x USB to PC

Data export formats: .csv, .txt, .png, .spc,. aps, .pdf

Internal storage: 8 GB

Wireless connectivity: Wi-Fi stick (optional)

Spectral libraries: Factory library, user-built, third-party options

Security: User roles with customizable permissions, user password logins
