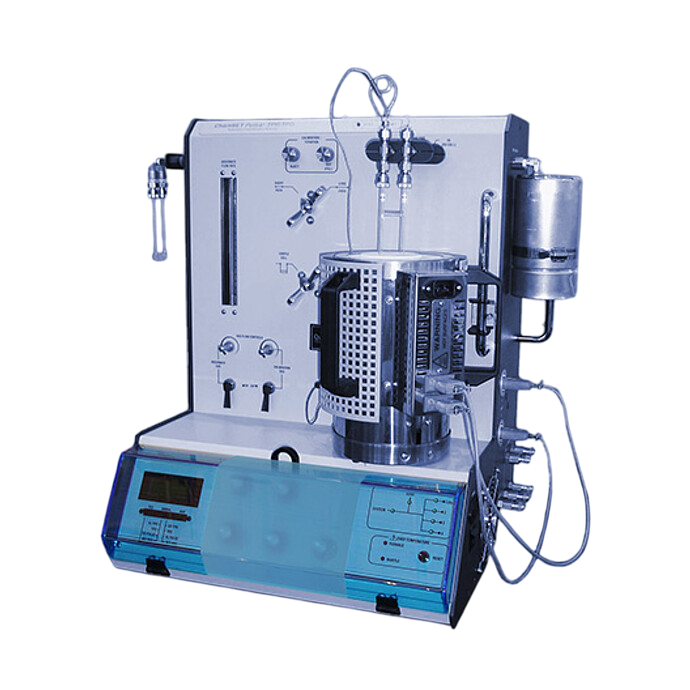

Anton Paar ChemBET Pulsar Automated Flow Chemisorption Analyzer

Sample stations: 1 analysis and 1 dedicated outgassing

Typical samples size: 0.1 g to 1.0 g

Temperature range: Ambient to 1100 °C

Temperature ramp rate: 1 °C/min to 50 °C/min

Furnace cooling: Built-in fan

Gas inputs: 4 analysis and 1 calibration

Sample cell: Quartz U-tube for high-temperature chemisorption

Primary detector: Oxidation- and ammonia-resistant (W/Re) 2-filament TCD

Dimensions (W x H x D): 45.2 cm x 63 cm x 41.4 cm (18 in x 25 in x 16 in)

Standard capabilities:

Temperature Programmed Desorption (TPD)

Temperature Programmed Reduction (TPR)

Temperature Programmed Oxidation (TPO)

Temperature Programmed Reaction (TPRx)

Catalyst Treatment

Flow BET Surface Area

Pulse Titration

Pulse Calibration
