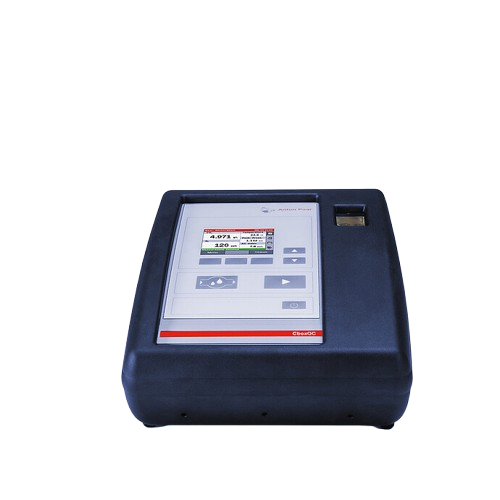

Anton Paar CboxQC Craft Combined CO₂ And DO Meter (0 g/L ~ 8 g/L; 0 ppm ~ 4 ppm)

Measuring range:

CO2:  0 g/L to 8 g/L (0 vol. to 4 vol.)

O2: 0 ppm to 4 ppm

Temperature: –3 °C to 40 °C (27 °F to 104 °F), acc. ±0.2 °C

Pressure: 0 bar to 10 bar absolute (0 psi to 145 psi)

Repeatability s.d.:

CO2: ±0.1 g/L (0.05 vol.)

O2: 2 ppb (in the range <200 ppb)

Resolution:

CO2: 0.1 g/L

O2: 1 ppb

Sample volume: >150 mL

Measuring units:

CO2: g/L, vol., mg/L, MPa[1], kg/cm2[1], % w/w[2]

O2: ppm, ppb, hPa, mg/L, μg/L, % Air-sat., % O2-sat.

Measuring time: > 90 seconds

Data memory: 200 measurement data sets

Built-in support: FillingCheck™, CO2 | O2 Data Logger, threshold value functionality, System Check

Portable use: Up to 11 hours continuous use

Communication interfaces: 1x RS-232 (CAN-open[3]), 1x USB; optional: 1x RFID[4], 1x Bluetooth[4]

Protection class: IP67

Dimensions (L x W x H): 262 mm x 209 mm x 176 mm (10.3 in x 8.2 in x 6.9 in)

Weight: 2.8 kg (6.2 lbs)

[1] For method BEER at 20 °C

[2] For samples with density 1 g/cm3

[3] CarboQC Standard only

[4] Except Craft
