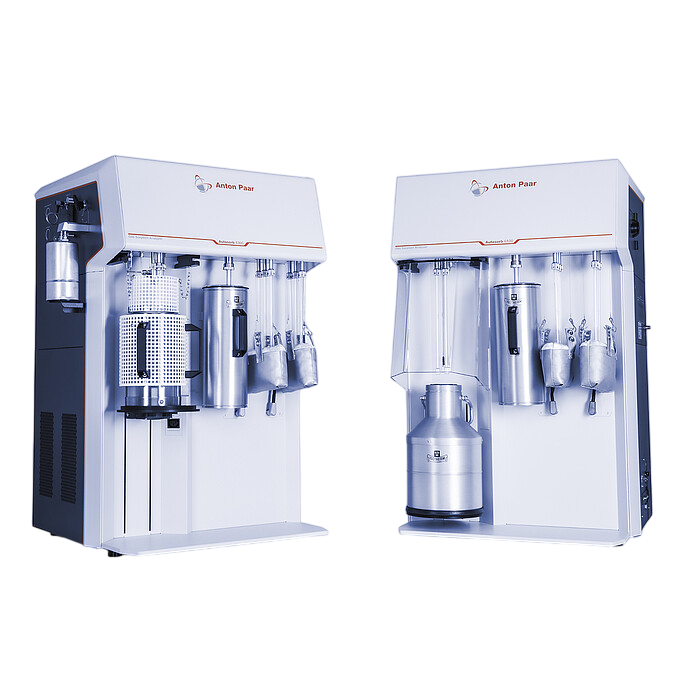

Anton Paar Autosorb 6300 High Vacuum Physisorption Analyzer (PFE)

Measurement principle:

Vacuum Volumetric Physisorption

Vacuum Volumetric Chemisorption

Dynamic Flow Chemisorption

N2, Ar, Kr, CO2, H2, and other non-corrosive gases: Included

CH4, C2H6, C3H8, other alkanes, C6H6, C8H10: Included

NH3, C5H5N, C3H6O, and other reactive gases: Included

Pressure:

Range: 2x10-5 to 1100 Torr (2.6x10-8 to 0.997 p/p0 for N2 77K)

Resolution (MP): 2x10-5 Torr (2.6x10-8 p/p0 for N2 77K)

Resolution (XR): 1x10-6 Torr (1.3x10-9 p/p0 for N2 77K)

BET surface area:

Absolute detection limit: 0.1 m2 (N2 77K)

Specific detection limit: 0.01 m2/g (N2 77K)

Typical reproducibility: 1 % (measured on BAM P115)

Reproducibility limit: 2 % with 2 m2 in the cell

Pore size:

Range: 0.35 nm to 500 nm (diameter)

Typical reproducibility: 0.5 % (measured on BAM P115)

Dimensions (W x D x H): 79.5 cm x 70.1 cm x 107.9 cm (31.3 in x 27.6 in x 42.5 in) dependent on instrument configuration

Weight: 136.4 kg (300 lbs) dependent on instrument configuration

Operating environment:

Temperature: 15 °C to 35 °C (59 °F to 95 °F)

Humidity: 20% RH to 80% RH, non-condensing

Gas distribution manifold elastomers: PFE

Thermal conductivity detector (TCD):

Two-filament TCD with rhenium/tungsten filaments (standard)

Detection Limit: 0.5 uL (air injected into helium)

Gas ports: 15 ports standard (12 analysis, 1 helium, 1 degas/backfill, 1 titration)

Gas supply:

Purity: 99.999 %

Input pressure: 8 psig to 10 psig (0.55 bar to 0.69 bar)

Air: Input pressure: 50 psig to 100 psig (3.45 bar to 6.9 bar)

Electrical:

Supply: 100 to 240 VAC ±10%, 50 or 60Hz

Maximum consumption: 1600W (dependent on instrument configuration)
