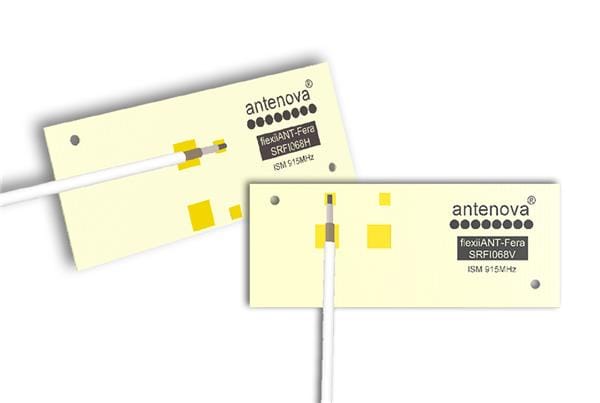

Antenova SRFI068V-100 Passive Antenna Fera 100mm cable + Ipex

Gain: - 4.4 dBi

VSWR: 1.4:1

Style: I-Bar Flex

Width: 13 mm

Height: 0.15 mm

Length: 33 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: Remote Monitoring, Smart Meters, Home Automation, Medical Devices

Cable Length: 101.3 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Frequency Range: 902 MHz to 928 MHz

Number of Bands: 1 Band

Center Frequency: 915 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 928 MHz

Minimum Frequency: 902 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: IPEX MHF

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
