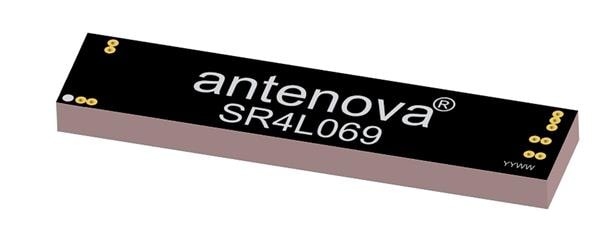

Antenova SR4L069 PCB Antennas Allani SMD Antenna

Gain: - 0.2 dBi, 1.6 dB, 4.1 dBi, 3.4 dBi, 5.1 dBi, 5.4 dBi

VSWR: 3.6:1, 3.3:1, 2.3:1, 2.2:1, 2.4:1, 2.3:1

Style: Chip

Width: 10 mm

Height: 3.3 mm

Length: 45 mm

Bandwidth: 207 MHz, 136 MHz, 460 MHz, 100 MHz, 190 MHz, 500 MHz

Impedance: 50 Ohms

Application: Telematics, Network Devices, Pico Base-Stations, Remote Motoring, POS, M2M, IoT, CCTV, Drone

Polarization: Linear

Mounting Style: PCB Mount

Frequency Range: 617 MHz to 3.8 GHz

Number of Bands: 6 Band

Center Frequency: 720.5 MHz, 892 MHz, 1940 MHz, 2350 MHz, 2595 MHz, 3550 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 3.8 GHz

Minimum Frequency: 617 MHz

Termination Style: SMD/SMT

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 3G/4G/5G, Cellular (NBIoT, LTE), DSC, PCS, GSM, WCDMA
