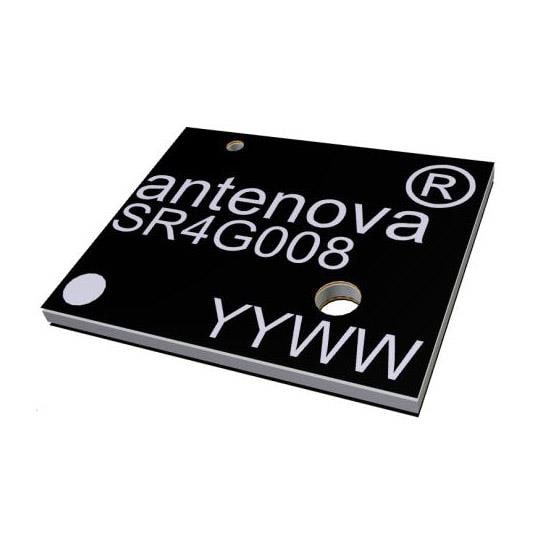

Antenova SR4G008 Passive Antenna 1559-1609MHz Avg. Eff >75% Linear
Gain: 0 dBi
VSWR: 1.4:1
Style: Ceramic
Width: 5.8 mm
Height: 0.4 mm
Length: 7 mm
Impedance: 50 Ohms
Technology: GNSS
Application: Trackers, Portable Devices, Drones, Network Devices, Weareables
Unit Weight: 200 mg
Polarization: Linear
Mounting Style: PCB Mount
Number of Bands: 1 Band
Center Frequency: 1.5805 GHz
Mechanical Style: Patch
Maximum Frequency: 1.61 GHz
Minimum Frequency: 1.559 GHz
Termination Style: SMD/SMT
Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
