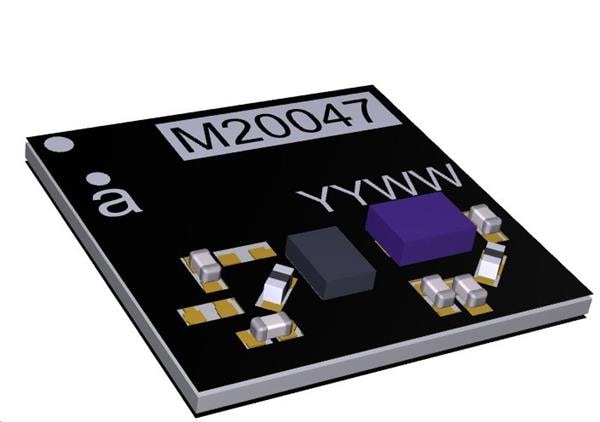

Antenova M20047-1 Active Antenna 1559-1609MHz GNSS Module

Gain: - 0.5 dBi

VSWR: 1.4:1

Style: Ceramic

Width: 7 mm

Height: 0.9 mm

Length: 7 mm

Impedance: 50 Ohms

Application: Weareables, Portable Devices, Asset Tracking, Personal Safety, Sport Cameras Equipment, Smart Watches, Navigation

Unit Weight: 1 g

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 1.584 GHz

Mechanical Style: Chip

Maximum Frequency: 1.609 GHz

Minimum Frequency: 1.559 GHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
