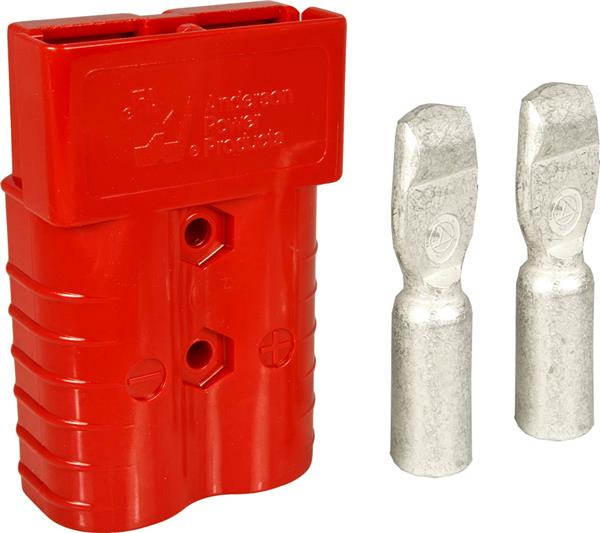

Anderson Power Products 6322G1 Connectors SB350 RED 2/0 AWG 2/0 AWG 350A CONT

Unit Weight: 258.095 g

For Use With: SB350 Connectors

Housing Color: Red

Current Rating: 350 A

Mounting Angle: Straight

Mounting Style: Cable

Number of Rows: 1 Row

Voltage Rating: 600 V

Wire Gauge Max: 2/0 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Insert / Contact Gender: Genderless

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 20 C
