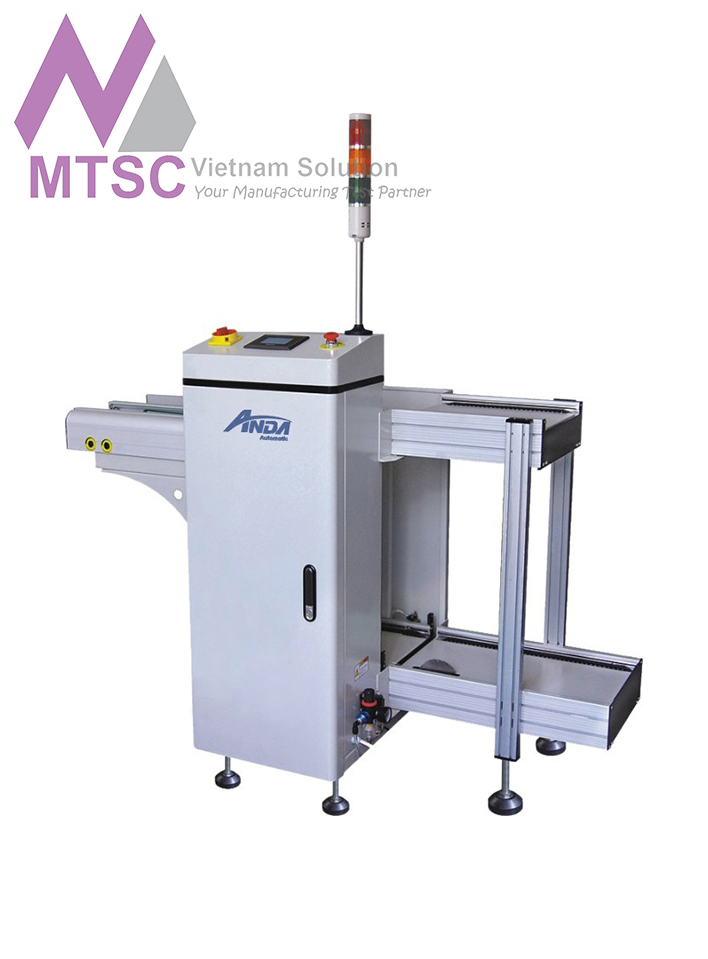

Anda LD-460W Magazine PCB Automatic Loader

ANDA SMEMA compatible loader feeds PCBs into the Process Line from Stacks or Magazines. 460 x 535mm maximum PCB or pallet dimensions. Touchscreen control. Two models to choose from.

Control Panel: Touch Screen

Power Supply: 120 VAC, 208-230VAC / 50-60Hz

Air Pressure Supply: 5kgf/cm (70psi)

PCB size (mm): 120x50mm ~ 460x535mm

PCB Transfer Direction: L-R or R-L

Magazine size LxWxH (mm): 535 x 530 x 570mm

Pitches (mm): 10, 20, 30, 40mm

Working height (mm): 900+50/-20mm

Dimensions LxWxH (mm): 1820 x 975 x 1200mm

Weight: 280kg
