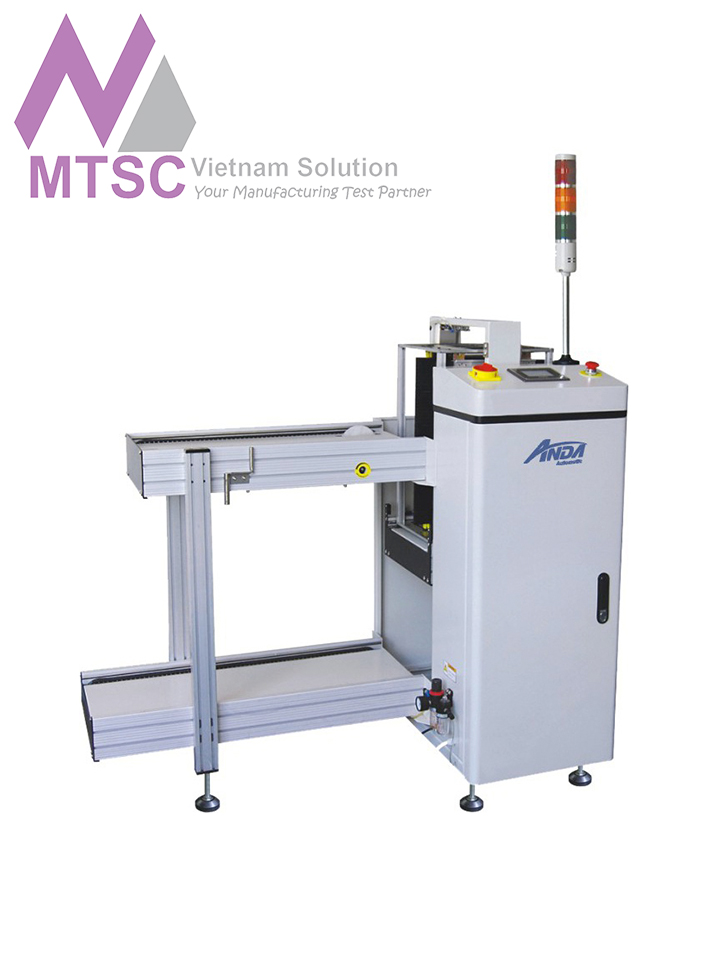

Anda LD-330W Magazine PCB Automatic Loader

ANDA SMEMA compatible loader feeds PCBs into the Process Line from Stacks or Magazines. 460 x 535mm maximum PCB or pallet dimensions. Touchscreen control. Two models to choose from.

Model: LD-330W

Control Panel: Touch Screen

Power Supply: 120 VAC, 208-230VAC / 50-60Hz

Air Pressure Supply: 5kgf/cm (70psi)

PCB size (mm): 50x50mm ~ 330x460mm

PCB Transfer Direction: L-R or R-L

Magazine size LxWxH (mm): 460 x 400 x 563mm

Pitches (mm): 10, 20, 30, 40mm

Working height (mm): 900+50/-20mm

Dimensions LxWxH (mm): 1630 x 845 x 1200mm

Weight: 230kg
