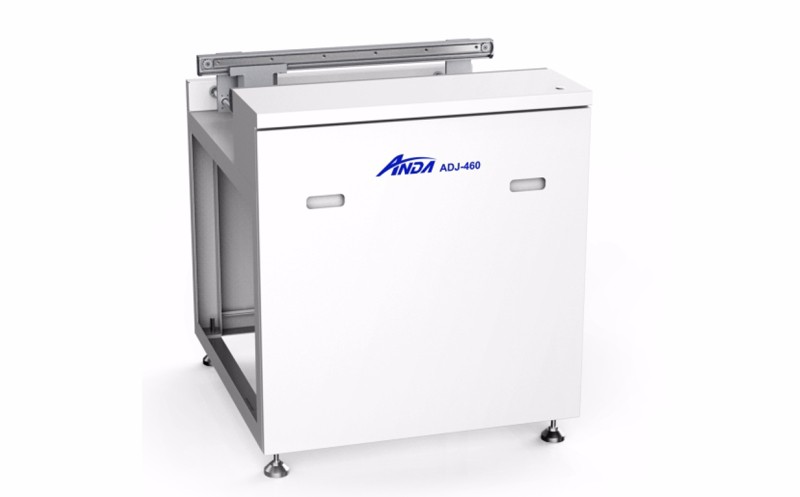

Anda ADJ 460 Automatic Machine Load/Unload

Application range:

The fields of application involve SMT coating production line, dispensing production line and non-standard production line.

Product features:

Integrated frame soldered by sheet metal.

The board width of passing through the station is adjusted arbitrarily from 50 to 460mm.

Equipment length specification 0.5m,0.8m optional.

Technical Parameters ：

• Size: L=800 W=840 H=1110mm

• Control system: button

• Working height: 900±20mm

• Conveyor length: 800mm

• Conveyor type: edge conveyor with extended pin chain

• PCB size: 50～460mm

• Conveyor speed: 0.35-6m/min

• Conveyor direction: from left to right

• Conveyor motor: JSCC governor motor +speed controller

• Power supply: single phase 220V 50/60HZ

• Total power: 100W
