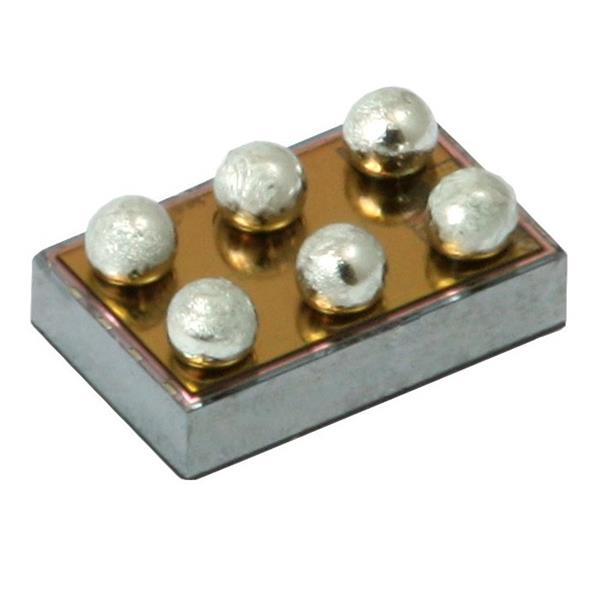

Analog Devices MAX9934FART+T Current Sense Amplifiers High-Precision, Low-Voltage, Current-Sense Amplifier with Current Outputand Chip Select for Multiplexing

Shutdown: No Shutdown

Gain Error: 0.25 %

Input Type: Common Mode

Output Type: Current

3 dB Bandwidth: 1.5 kHz

Amplifier Type: Current Sense Amplifier

Mounting Style: SMD/SMT

Number of Channels: 1 Channel

Description/Function: High precision low voltage current sense amplifier with chip select

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.5 V

Pd - Power Dissipation: 308 mW

Ib - Input Bias Current: 100 pA

Operating Supply Current: 120 uA

Vcm - Common Mode Voltage: - 100 mV to 5.5 V

Vos - Input Offset Voltage: 10 uV

GBP - Gain Bandwidth Product: 5 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 134 dB

PSRR - Power Supply Rejection Ratio: 120 dB
