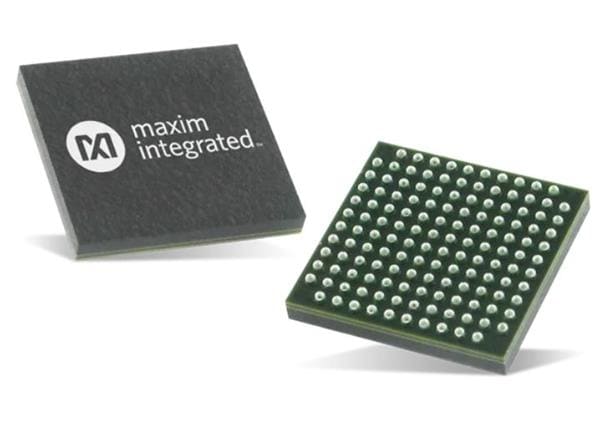

Analog Devices MAX32690GWE+T RF Microcontrollers - MCU M4 120MHz, Risc-V Co Processor, 3MB/1MB,

Core: ARM Cortex M4

Technology: Si

Data RAM Size: 1 MB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Interface Type: CAN, I2C, SPI, UART

Mounting Style: SMD/SMT

Number of Timers: 6 Timers

Operating Frequency: 120 MHz

Program Memory Size: 3.25 MB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.71 V

Number of ADC Channels: 8 Channel

Maximum Clock Frequency: 32.768 kHz

Operating Supply Voltage: 3 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
