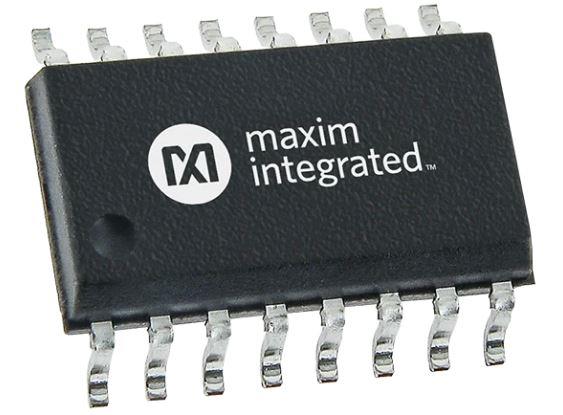

Analog Devices MAX22163FAEE+T Digital Galvanic Isolator 6 Channel Reinforced Isolator

Polarity: Unidirectional

Shutdown: No Shutdown

Data Rate: 200 Mb/s

Pulse Width: 5 ns

Isolation Type: Capacitive Coupling

Mounting Style: SMD/SMT

Isolation Voltage: 3000 Vrms

Maximum Fall Time: 3 ns

Maximum Rise Time: 2.4 ns

Number of Channels: 6 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.71 V

Pd - Power Dissipation: 718.78 mW

Propagation Delay Time: 7 ns

Pulse Width Distortion: 2 ns

Operating Supply Current: 7.83 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
