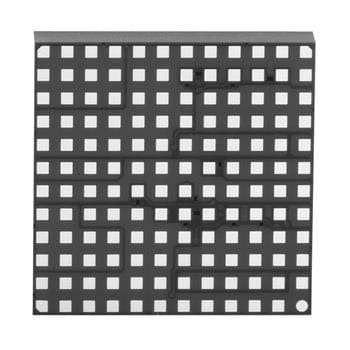

Analog Devices LTM4630EV#PBF Multiple Output DC/DC uModule Buck Regulator 2x 18A or 1x 36A DC/DC uModule Reg

Shutdown: Shutdown

Topology: Buck

Unit Weight: 6.300 g

REACH - SVHC: Details

Input Voltage: 12 V

Mounting Style: SMD/SMT

Output Current: 18 A

Output Voltage: 600 mV to 1.8 V

Development Kit: DC1892A, DC2007A-A, DC2007A-C, DC2007A-B, DC2081A-A, DC2106B-B

Load Regulation: 0.5 %

Number of Outputs: 1 Output

Quiescent Current: 35 uA

Moisture Sensitive: Yes

Input Voltage - Max: 15 V

Input Voltage - Min: 4.5 V

Switching Frequency: 500 kHz

Operating Supply Current: 3 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
