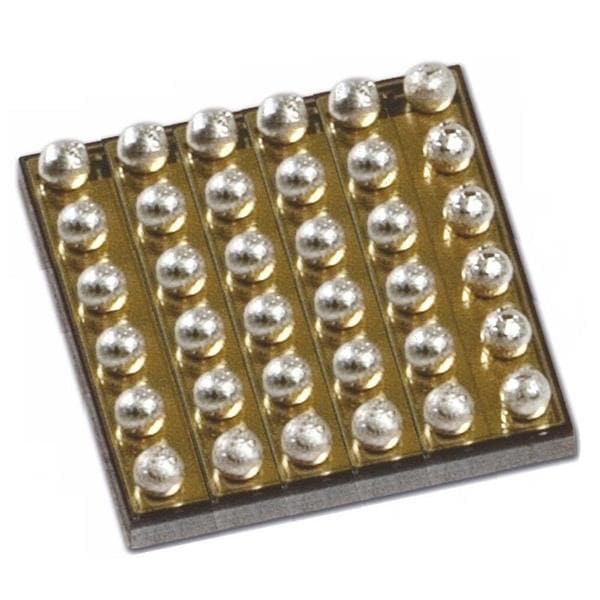

Analog Devices LTC2672HCB-16#TRPBF Current Source Digital to Analog Converter 5ch 300mA 16Bit CurrentSourceOut DAC

Features: Flexible Single Dual Supply Operation

Shutdown: Shutdown

Gain Error: 0.7 % FSR

Resolution: 16 bit

Output Type: Current

Settling Time: 200 us

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: External, Internal

Reference Voltage: 1.25 V

Number of Channels: 5 Channel

Number of Converters: 5 Converter

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.85 V

Analog Supply Voltage: 2.85 V to 5.5 V

Digital Supply Voltage: 1.71 V to 5.5 V

Operating Supply Current: 4 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.45 LSB
