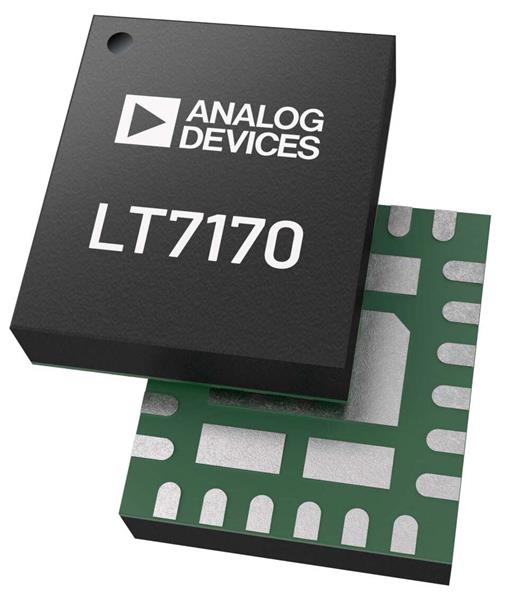

Analog Devices LT7170RV#TRMPBF DC to DC Synchronous Stepdown Regulator 16V 20A Single/Dual Phase Monlithic Buck

Shutdown: Shutdown

Topology: Boost, Buck

Input Voltage: 2.9 V to 16 V

Mounting Style: SMD/SMT

Output Current: 20 A

Output Voltage: 400 mV to 5.5 V

Number of Outputs: 1 Output

Quiescent Current: 33 mA

Moisture Sensitive: Yes

Input Voltage - Max: 16 V

Input Voltage - Min: 2.9 V

Switching Frequency: 400 kHz to 4 MHz

Supply Voltage - Min: 2.9 V

Operating Supply Current: 6 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
