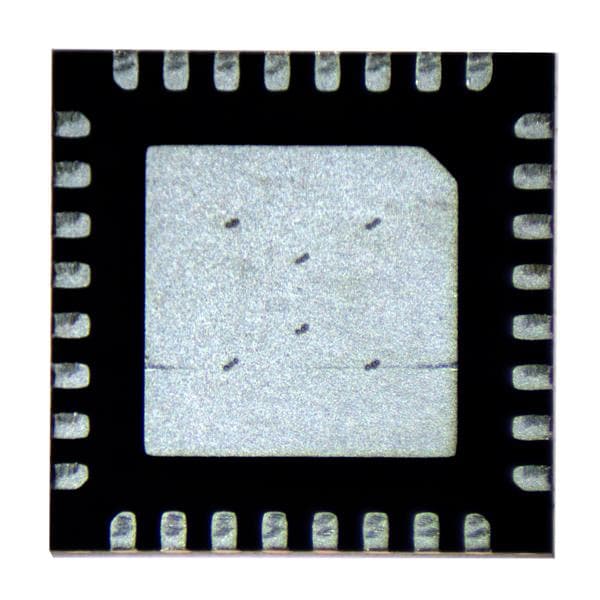

Analog Devices DG1206ETJ+ Multiplexers Low leakage, low capacitance, Multiplexe

Bandwidth: 150 MHz

Supply Type: Single Supply, Dual Supply

Configuration: 1 x 16:1

On Time - Max: 400 ns

Mounting Style: SMD/SMT

Off Time - Max: 400 ns

Number of Channels: 16 Channel

Dual Supply Voltage: +/- 5 V to +/- 20 V

Off Isolation - Typ: - 80 dB

On Resistance - Max: 160 Ohms

Supply Current - Max: 80 uA

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Switch Voltage - Max: 20 V

Pd - Power Dissipation: 1.0256 W

Operating Supply Voltage: 5 V to 20 V

Maximum Dual Supply Voltage: +/- 20 V

Minimum Dual Supply Voltage: +/- 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
