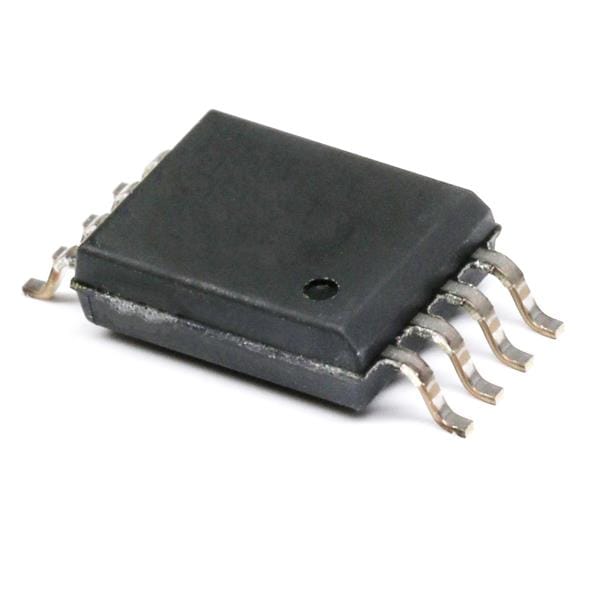

Analog Devices ADUM4122CRIZ-RL IGBT, MOSFET Gate Drivers IGBT Gate Driver w/ Slew Rate Control

Shutdown: Shutdown

Fall Time: 17 ns

Rise Time: 17 ns

Logic Type: CMOS

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 11.6 V to 35 V

Development Kit: EVAL-ADuM4122EBZ

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Supply Voltage - Max: 35 V

Supply Voltage - Min: 3.3 V

Propagation Delay - Max: 48 ns

Operating Supply Current: 11 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 3 Ohms
