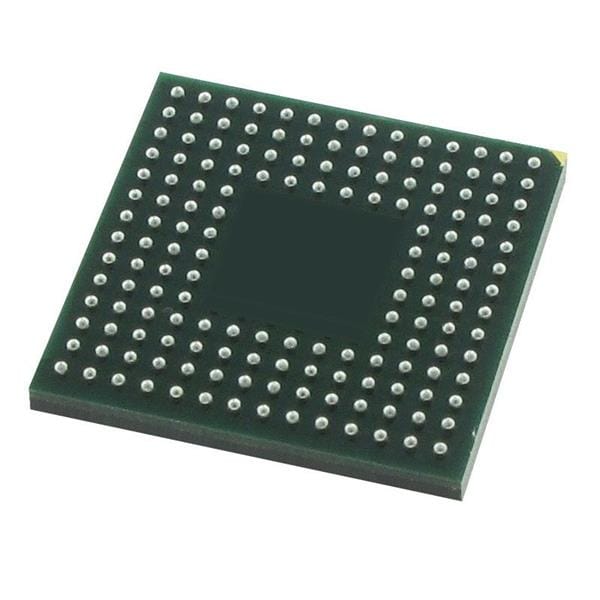

Analog Devices ADUCM350BBCZ SOC - Metering Systems on a Chip Impedance measurement with ARM Cortex M3

Core: ARM Cortex M3

Unit Weight: 1 g

Data RAM Size: 32 kB

Data RAM Type: SRAM

Data ROM Size: 16 kB

Data ROM Type: EEPROM

ADC Resolution: 16 bit

Data Bus Width: 32 bit

Interface Type: I2C, I2S, LCD, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 66 I/O

Processor Series: ADuCM

Moisture Sensitive: Yes

Program Memory Size: 384 kB

Program Memory Type: Flash

Maximum Clock Frequency: 16 MHz

Operating Supply Voltage: 2.5 V to 3.6 V

Number of Timers/Counters: 5 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
