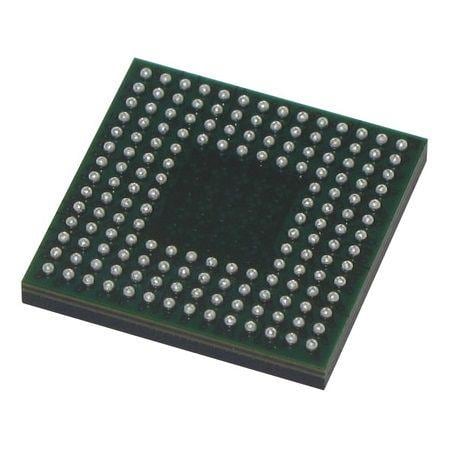

Analog Devices ADSP-BF532SBBCZ400 DSPs Dual MAC16-bit400MHz, 84KB SRAM

Core: Blackfin

Width: 12 mm

Height: 1.21 mm

Length: 12 mm

I/O Voltage: 1.8 V, 3.3 V

Unit Weight: 511.800 mg

Data RAM Size: 32 kB

Data Bus Width: 16 bit

Mounting Style: SMD/SMT

Number of I/Os: 16 I/O

Moisture Sensitive: Yes

Program Memory Size: 84 kB

L1 Cache Data Memory: 32 kB

Maximum Clock Frequency: 400 MHz

Operating Supply Voltage: 1.2 V

Number of Timers/Counters: 4 Timer

L1 Cache Instruction Memory: 48 kB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
