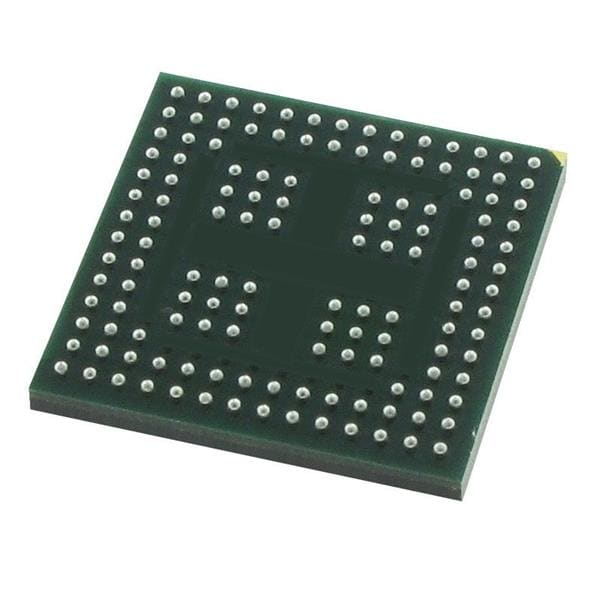

Analog Devices ADSP-21261SKBCZ150 DSPs 150 MHz, 32Bit DSP Processor

Core: SHARC

Width: 12 mm

Height: 1.21 mm

Length: 12 mm

Unit Weight: 490 mg

Data ROM Size: 3 MB

Data Bus Width: 32 bit

Mounting Style: SMD/SMT

Number of I/Os: 16 I/O

Moisture Sensitive: Yes

Program Memory Size: 128 kB

Supply Voltage - Max: 1.26 V

Supply Voltage - Min: 1.14 V

Maximum Clock Frequency: 150 MHz

Operating Supply Voltage: 1.14 V to 1.26 V

Number of Timers/Counters: 3 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
