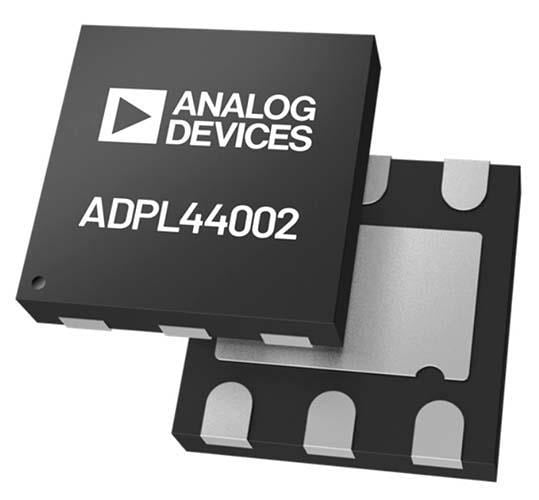

Analog Devices ADPL44002ACPZN-R7 CMOS LDO Linear Regulator 40V 200mA LDO adjVo

Polarity: Positive

Output Type: Adjustable

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 1.2 V

Dropout Voltage: 220 mV

Line Regulation: 0.01 %/V

Load Regulation: 0.002 %/mA

Number of Outputs: 1 Output

Quiescent Current: 80 uA

Input Voltage - Max: 40 V

Input Voltage - Min: 2.7 V

Dropout Voltage - Max: 450 mV

Ib - Input Bias Current: 10 nA

Operating Supply Current: 80 uA

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 78 dB
