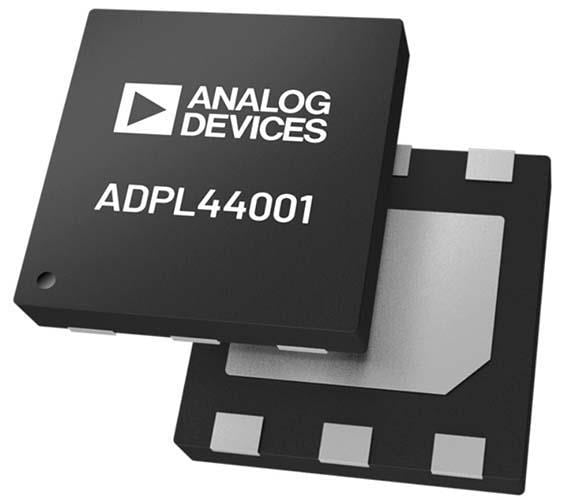

Analog Devices ADPL44001AZT+T High Voltage Linear Regulator 40v, 100mA, Ultra-Low Quiescent Current,

Output Type: Adjustable

Mounting Style: SMD/SMT

Dropout Voltage: 560 mV

Line Regulation: 0.1 %

Load Regulation: 0.5 %

Number of Outputs: 1 Output

Quiescent Current: 8 uA

Input Voltage - Max: 40 V

Input Voltage - Min: 4 V

Output Voltage Range: 600 mV to 38 V

Dropout Voltage - Max: 1.1 V

Operating Supply Current: 900 nA

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
