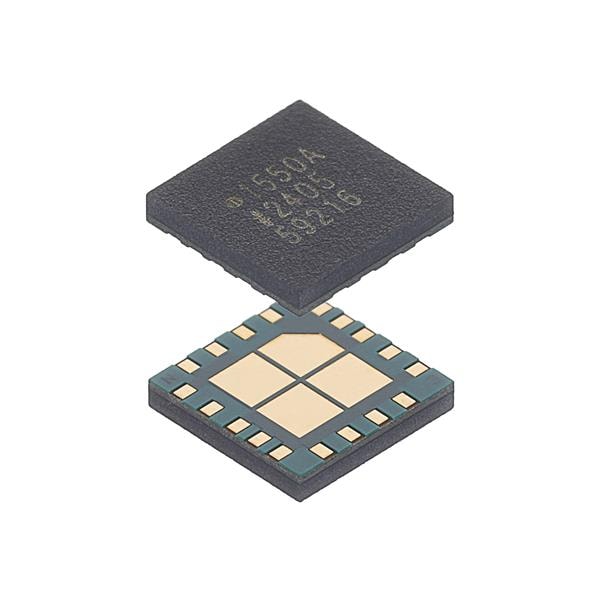

Analog Devices ADMV1550ACCZ RF Mixer 20 to 50 GHz DB Mixer
ManufacturerAnalog Devices(View more products from this manufacturer)
ModelADMV1550ACCZ
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: GaAs
IF Frequency: DC to 20 GHz
LO Frequency: 15 GHz to 50 GHz
RF Frequency: 15 GHz to 65 GHz
Mounting Style: SMD/SMT
Development Kit: EVAL-ADMV1550
NF - Noise Figure: 7 dB, 10 dB
Moisture Sensitive: Yes
Conversion Loss - Max: 13 dB
Pd - Power Dissipation: 108 mW
P1dB - Compression Point: 10 dBm
OIP3 - Third Order Intercept: 15 dBm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
