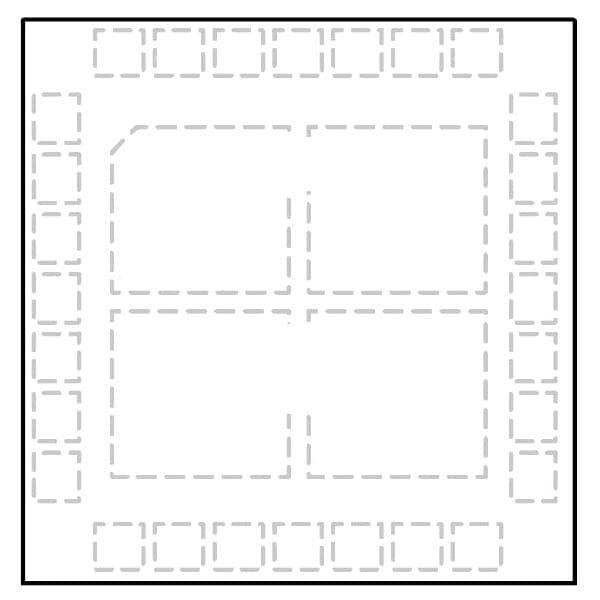

Analog Devices ADL8111ACCZN General Purpose Amplifiers 28-LGA-6X6_MM Module/SIP

Gain: 12.5 dB

Technology: Si

Unit Weight: 4.710 g

Mounting Style: SMD/SMT

Test Frequency: 10 MHz to 500 MHz

Input Return Loss: 14 dB

NF - Noise Figure: 2.8 dB

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Operating Frequency: 10 MHz to 8 GHz

Pd - Power Dissipation: 610 mW

Operating Supply Current: 70 mA

Operating Supply Voltage: 3.3 V, 5 V

P1dB - Compression Point: 17 dBm

OIP3 - Third Order Intercept: 34 dBm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
