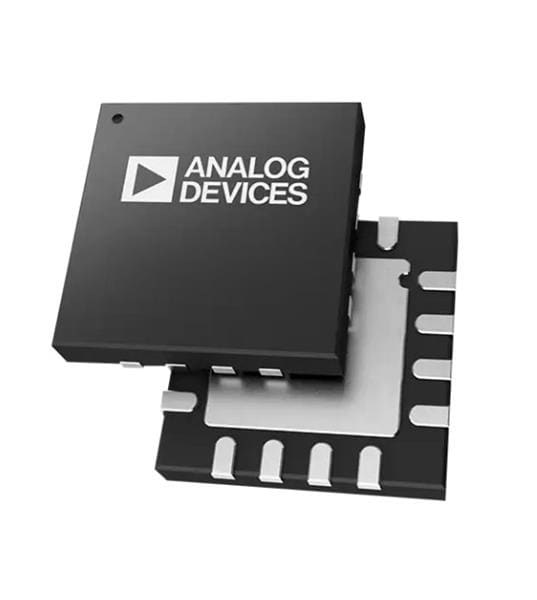

Analog Devices ADG2436BCPZ-REEL7 Analog Switch ICs <1ohm RON, +/- 18V, +36V Quad SPST Switches

Supply Type: Dual Supply

Configuration: 2 x SPDT

On Time - Max: 224 ns

Mounting Style: SMD/SMT

Off Time - Max: 224 ns

Development Kit: EVAL-ADG2436EBZ

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Number of Switches: 2

Dual Supply Voltage: 4.5 V to 16.5 V

On Resistance - Max: 700 mOhms

Supply Current - Max: 330 uA

Supply Voltage - Max: 16.5 V

Supply Voltage - Min: 5 V

Operating Supply Voltage: 5 V to 16.5 V

Switch Continuous Current: 847 mA

Maximum Dual Supply Voltage: 16.5 V

Minimum Dual Supply Voltage: 4.5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
