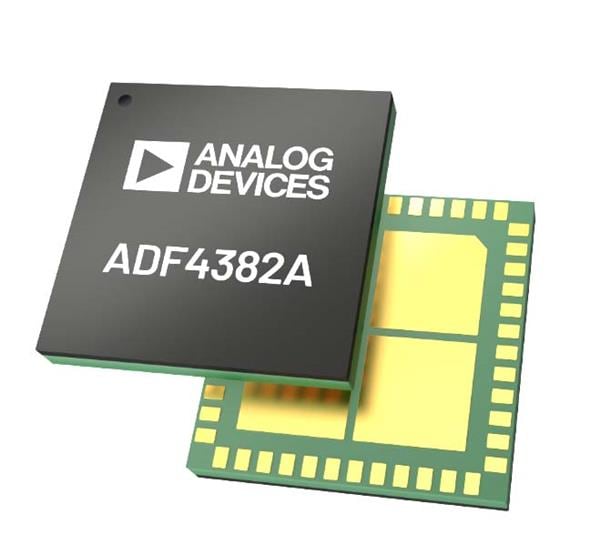

Analog Devices ADF4382ABCCZ Clock Synthesizer PLLVCO, 11.5-21,6.75-10.5GHz(Apollo Clk)

Input Level: LVDS

Output Level: PLL

Mounting Style: SMD/SMT

Development Kit: EVAL-ADF4382A

Moisture Sensitive: Yes

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 3.15 V

Output Frequency Range: 11.5 GHz to 21 GHz

Maximum Input Frequency: 4.5 GHz

Minimum Input Frequency: 10 MHz

Operating Supply Current: 340 mA

Operating Supply Voltage: 3.15 V to 5.25 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
