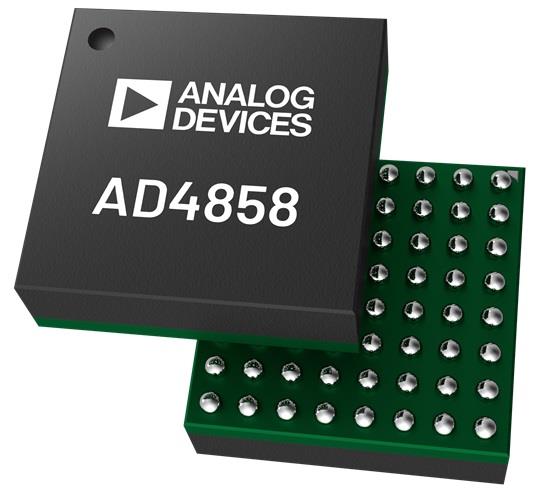

Analog Devices AD4858BBCZ Simultaneous Sampling ADC 20-Bit, 8-channel Sim Sampling DAQ Syste

Shutdown: No Shutdown

Resolution: 20 bit

Sampling Rate: 1 MS/s

Settling Time: 300 ns

Interface Type: SPI

Mounting Style: SMD/SMT

Number of ADCs: 8

Reference Type: External, Internal

Development Kit: EVAL-AD4858FMCZ

Reference Voltage: 4.096 V

Moisture Sensitive: Yes

Number of Channels: 8 Channel

Number of Converters: 8 Converter

Supply Voltage - Max: 0 V, 48 V

Supply Voltage - Min: - 40.75 V, 7.25 V

Number of ADC Channels: 8 Channel

Pd - Power Dissipation: 907 mW

INL - Integral Nonlinearity: 160 uV

SNR - Signal to Noise Ratio: 97.2 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.2 LSB
