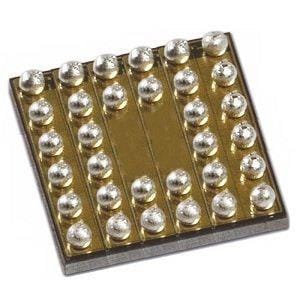

Analog Devices AD4698BCBZ-RL7 Easy Drive Multiplexed SAR ADC 8 Ch, 16 Bit 1 MSPS SAR ADC

Features: Easy Drive, Enhanced Digital Functionality, High Channel Density, High Performance

Shutdown: No Shutdown

Gain Error: 0.001 %FS

Input Type: Pseudo-Differential/Single-Ended

Resolution: 16 bit

Architecture: SAR

Sampling Rate: 1 MS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: External, Internal, Supply

Reference Voltage: 2.4 V to 5.1 V

Number of Channels: 8 Channel

Analog Supply Voltage: 3.15 V to 5.5 V

Digital Supply Voltage: 1.71 V to 1.89 V

SNR - Signal to Noise Ratio: 93 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

THD - Total Harmonic Distortion: - 117 dB

SFDR - Spurious Free Dynamic Range: 121 dB

SINAD - Signal to Noise and Distortion Ratio: 93 dB
