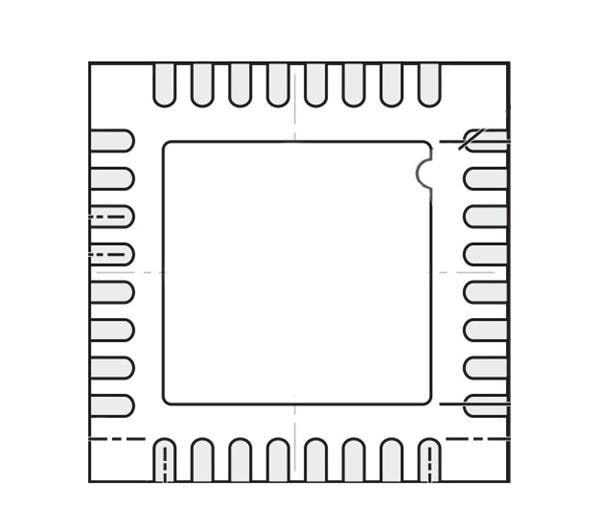

Analog Devices AD3551RBCPZ16-RL7 DAC Single ch 16 bit IOUT

Features: 33 MUPS Rate in Fast Mode

Shutdown: Shutdown

Resolution: 16 bit

Output Type: Current

Architecture: DAC

Settling Time: 100 ns

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Voltage: 2.5 V

Number of Channels: 1 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 1.89 V

Supply Voltage - Min: 1.71 V

Analog Supply Voltage: 5 V

Operating Supply Current: 12 mA

INL - Integral Nonlinearity: 2 LSB

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 2 LSB

THD - Total Harmonic Distortion: - 105 dB

SFDR - Spurious Free Dynamic Range: - 105 dB
