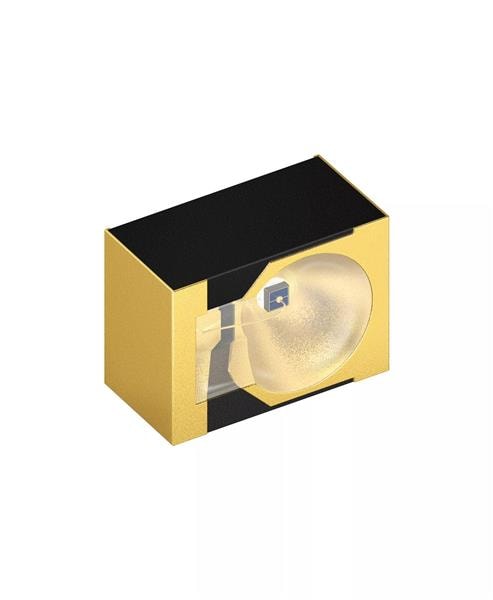

ams OSRAM SFH 4656-Z Narrow beam Infrared Emitter in MIDLED package 850 nm MIDLED
Manufacturerams OSRAM(View more products from this manufacturer)
ModelSFH 4656-Z
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 1.6 mm
Height: 2.25 mm
Length: 3.1 mm
Fall Time: 12 ns
Rise Time: 12 ns
Beam Angle: 20 deg
Lens Shape: Cone
Wavelength: 860 nm
Unit Weight: 23 mg
Power Rating: 140 mW
Qualification: AEC-Q100
Viewing Angle: 20 deg
Mounting Style: SMD/SMT
Radiant Intensity: 60 mW/sr
Illumination Color: Infrared
Moisture Sensitive: Yes
If - Forward Current: 70 mA
Vf - Forward Voltage: 1.6 V
Vr - Reverse Voltage: 5 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
