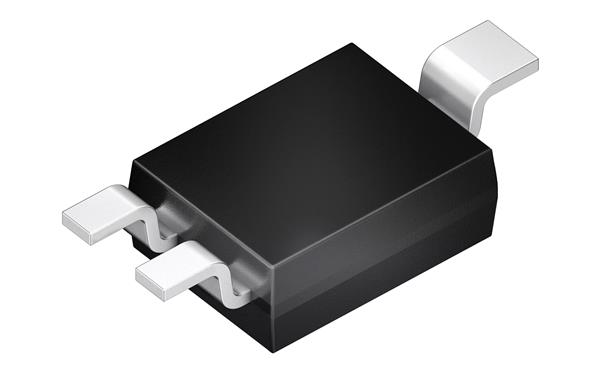

ams OSRAM SFH 2400 FAR Silicon PIN Photodiode PHOTODIODE

Width: 2 mm

Height: 1.1 mm

Length: 2.6 mm

Fall Time: 5 ns

Rise Time: 5 ns

Unit Weight: 12 mg

Dark Current: 1 nA

Photocurrent: 6.2 uA

Responsivity: 0.65 A/W

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Peak Wavelength: 900 nm

Moisture Sensitive: Yes

If - Forward Current: 80 mA

Vf - Forward Voltage: 1.3 V

Vr - Reverse Voltage: 20 V

Pd - Power Dissipation: 120 mW

Half Intensity Angle Degrees: 60 deg

Noise Equivalent Power - NEP: 2.8E-14 W/sqrt Hz

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
