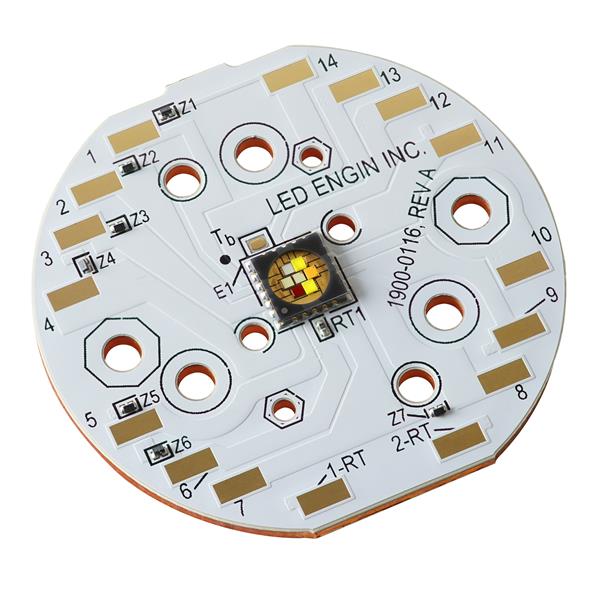

ams OSRAM LZ7-A4M2PD-0000 High Power LEDs LuxiGen Multi-Color LED on MCPCB

Width: 7 mm

Height: 1.06 mm

Length: 7 mm

Lens Color: Colorless

Unit Weight: 59.188 g

Viewing Angle: 114 deg

Mounting Style: SMD/SMT

Illumination Color: RGB, Amber, Cyan, Lime

If - Forward Current: 1 A

Vf - Forward Voltage: 2.4 V, 3.5 V, 3.2 V, 3.6 V, 3.8 V, 6.4 V

Luminous Flux/Radiant Flux: 75 lm, 160 lm, 1 W, 90 lm, 85 lm, 495 lm

Wavelength/Color Temperature: 617 nm, 622 nm, 519 nm, 522 nm, 449 nm, 495 nm

Maximum Operating Temperature: + 125 C
