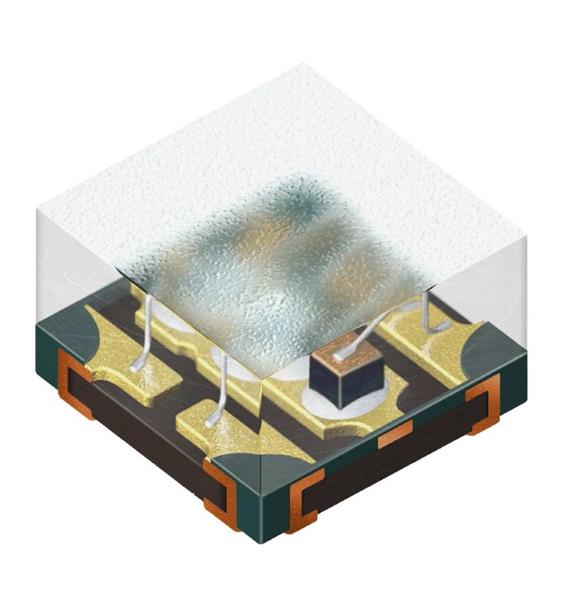

ams OSRAM LRTB R48G Multi-Color LEDs RGB Multi CHIPLED

Width: 1.3 mm

Height: 0.55 mm

Length: 1.3 mm

Lens Color: Colorless

Lens Shape: Square

Unit Weight: 18 mg

Viewing Angle: 120 deg

Mounting Style: SMD/SMT

Lens Dimensions: 1 mm x 1 mm

Lens Transparency: Clear

Illumination Color: RGB

Luminous Intensity: 56 mcd, 125 mcd, 28 mcd

Moisture Sensitive: Yes

If - Forward Current: 10 mA

Vf - Forward Voltage: 1.95 V, 2.7 V, 2.7 V

Vr - Reverse Voltage: 10 V, 5 V, 5 V

Wavelength/Color Temperature: 632 nm, 523 nm, 455 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
