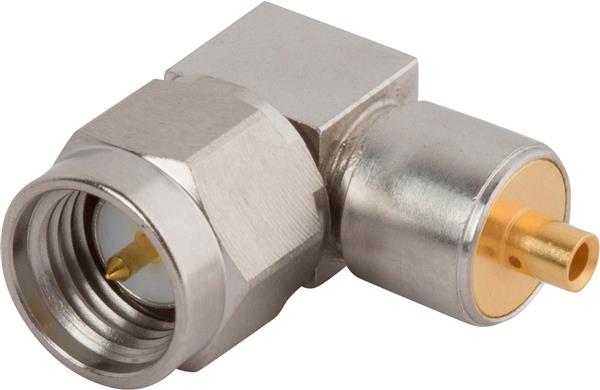

Amphenol SV Microwave SF2912-60955 Cable Connectors SMA R/A Plug for Dia 0.047in cable
Gender: Plug (Pin)
Polarity: Standard
Frequency: DC to 18 GHz
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMA
Body Style: Right Angle
Cable Type: 0.047 in. Flexible Coax
Body Finish: Passivated
Orientation: Right Angle
Body Material: Stainless Steel
Mating Cycles: 500 Cycles
Mounting Type: Cable
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 18 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
