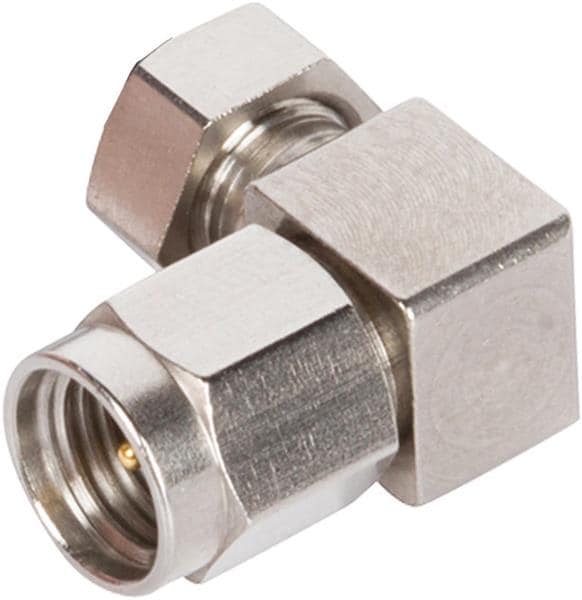

Amphenol SV Microwave SF1512-60027 Cable Connectors 2.92mm M Con R/A for .085 Cable
Gender: Plug (Pin)
Polarity: Standard
Frequency: DC to 40 GHz
Impedance: 50 Ohms
RF Series: 2.92 mm
Body Style: Right Angle
Cable Type: 0.085 in. Coax
Orientation: Right Angle
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 500 Cycles
Mounting Type: Cable
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 40 GHz
Minimum Frequency: DC
Termination Style: Crimp
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
