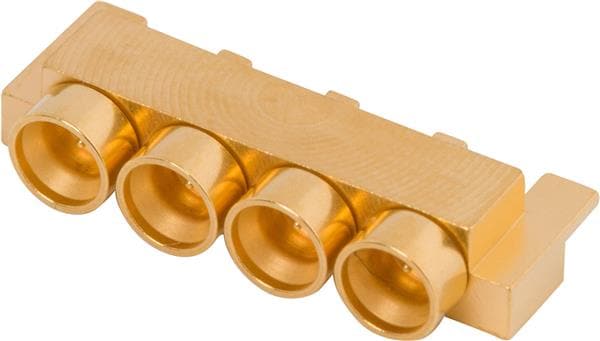

Amphenol SV Microwave 9311-60039 Multi-Port Connectors SMPM M Edge Launch Connector 4 Port FD
Gender: Plug (Pin)
Polarity: Standard
Frequency: DC to 65 GHz
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMPM
Body Style: Straight
Body Finish: Passivated
Orientation: Straight
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 500 Cycles
Mounting Type: PCB
Mounting Style: Edge Mount
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 65 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Push On
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
