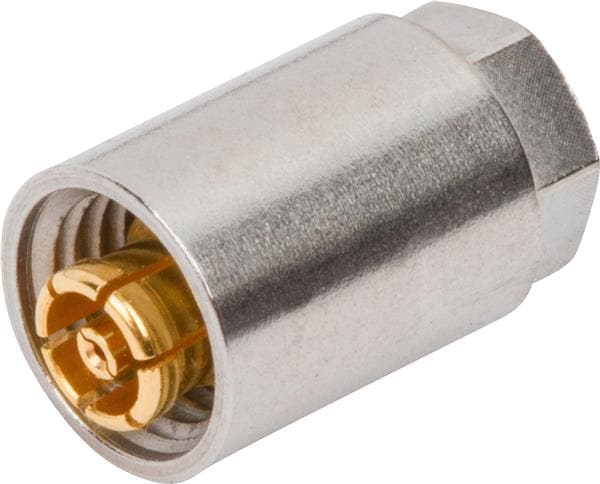

Amphenol SV Microwave 3221-60017 Cable Connectors Threaded SMPM Female Conn .047
Gender: Jack (Socket)
Polarity: Standard
Frequency: DC to 40 GHz
Impedance: 50 Ohms
RF Series: SMPM
Body Style: Straight
Cable Type: 0.047 in. Flexible Coax
Orientation: Straight
REACH - SVHC: Details
Body Material: Beryllium Copper
Mating Cycles: 500 Cycles
Mounting Type: Cable
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 65 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Crimp
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
